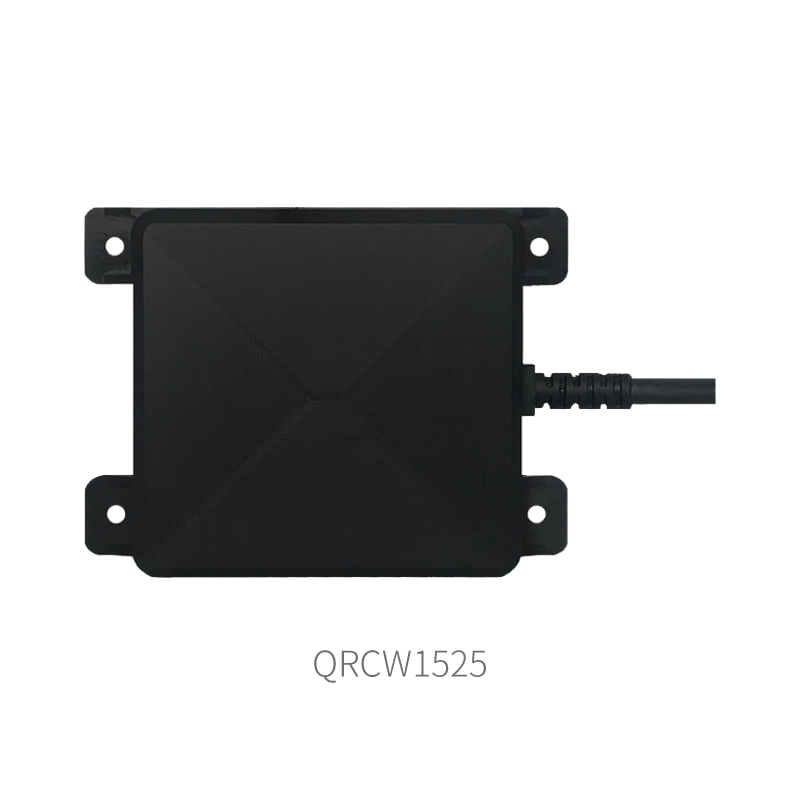

QRCW1525, an anti-collision radar for motorcycles, is a safety protection equipment that can actively alarm applied to the rear of the motorcycle. The radar detects approaching vehicles within 50 meters behind it by emitting millimeter wave signals, and when a vehicle enters the warning range, it will promptly upload the information of the rear incoming vehicles to the motorcycle central control system, which can promptly display the incoming signals on the screen in the front of the motorcycle. The radar can also display warning of the rear incoming vehicles in a specific form through the motorcycle tail light. Our company can cooperate with customers for personalized display customization.
The 24GHz anti-collision radar for motorcycles has three working modes, which are normal detection mode when the motorcycle is running, standby mode when the motorcycle is off and upgrade mode when the motorcycle is connected to the upper computer through CAN bus. Among them, the radar enters standby mode 10 minutes after the motorcycle is turned off, reducing the average power consumption of the radar with very low standby current. This radar supports the upgrade of the radar firmware through CAN bus, our company will update the radar firmware from time to time to optimize the radar performance.
The radar detects fast approaching vehicles from the rear of the motorcycle and displays the information on the motorcycle dashboard to assist motorcycle riders in safe riding.
The industry's first 24 GHz anti-collision radar for motorcycles.
Supporting distance accuracy of ±1m minimum.
Support speed detection from 10-160m/s.
Long-range coverage.of 50m
Unique algorithm architecture, can filter fences, roadblocks and other non-cargo objects
Unaffected by temperature, humidity, noise, airflow, dust, Light, etc., suitable for harsh environments
Rear-approach warning and blind spot detection
Classic Applications
When the motorcycle's speed is greater than 10km/h, it detects dynamic obstacles within 50m to the rear to achieve long-range rear incoming vehicle warning. And the radar can perform shield optimization for the detection of false alarms generated by targets outside the motorway and in the opposite lane, assisting motorcycle riders to ride safely.
System Characteristics
Parameter | Condition | Min | Typical | Max | Unit |
| Transmitting frequency | 24 | 24.25 | GHz | ||
| Transmitting power | 18 | dBm | |||
| Communication interface | CAN | ||||
| Detection distance | 2 | 50 | m | ||
| Velocity detection range | 10 | 160 | Km/h | ||
| Radar Azimuth | 53 | degree | |||
| Radar Pitch | 29 | degree |
Other characteristics
Parameter | Min | Typical | Max | Unit |
Operating Voltage | 8 | 12 | 24 | V |
Operating current | 10 | 90 | 120 | mA |
Size | 52x45x8 | mm(PCBA) | ||
